SQ30A Portable Pipe Threader for 1/2" to 1 1/4" Pipes

SQ30A Portable Pipe Threader for 1/2" to 1 1/4" Pipes

SQ30A Portable Pipe Threader for 1/2
SQ30A Portable Pipe Threader for 1/2SQ30A Portable Pipe Threader for 1/2SQ30A Portable Pipe Threader for 1/2SQ30A Portable Pipe Threader for 1/2SQ30A Portable Pipe Threader for 1/2
CategoriesPortable Pipe Threader
BrandHONGLI
ModelSQ30A
Motor1700W universal type
Voltage110V or 220V
Frequency50Hz or 60Hz
Speed25 RPM
Standard Equipmentspipe threader , threading die heads with alloy dies , oiler , tool BMC
G.W.(kg)15KGS
MOQ20 sets
FOB portShanghai or Ningbo
Terms of PaymentL/C, T/T, Western Union, paypal
Download DOC
Update Time2021-10-22
Detail Information

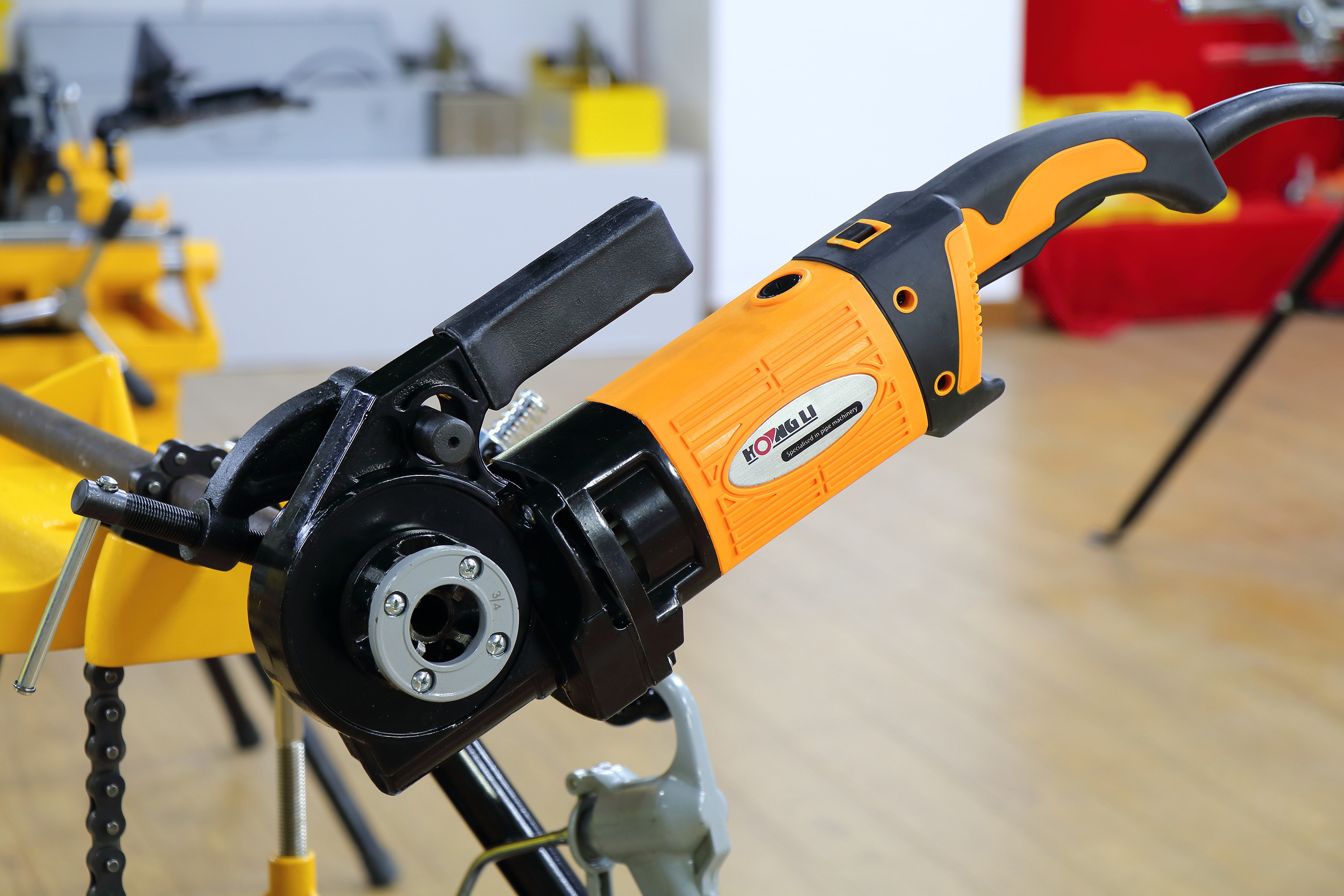

SQ30A Portable Pipe Threader ½”-1¼” (12 mm-32 mm)


1. SQ30A portable pipe threader employs a reversible 110V or 220V universal motor, double insulation devices and heavy-load motor driver. Its double insulation is as protective as three-wire ground installation.

2. SQ30A pipe threader is for threading of various water, electric or gas pipes ranging from 1/2"--11/4".It’s efficient and easy to carry (weight: 6 kilograms).

3. The pipe threader machine can be widely used in equipment installation and construction industries and is an ideal device for increasing work efficiency, shortening construction time,securing construction quality, and decreasing working intensity.

4. SQ30A pipe threader is designed to work with 11-R die heads for pipes ½”-1¼” (12 mm-32 mm) in diameter.

5. It is ideal for on-site applications such as gas line pipe installation.

5. Hongli SQ30A pipe threader is approved by CE certificate.



Specification

Capacity: ½”-1¼” (12 mm-32 mm) pipe.

Motor: 1700 W Universal 110 V or 220 V, 50/60 Hz.

Switch: heavy-load, complete with safety lock, cut-off and normal-reverse switches.

Gear Housing: box body cast with aluminum alloy, ever-lasting lubricating.

Body & Handle: Durable heavy-duty plastic shell and handle hardened by durable heavy-load fiberglass.

Spindle Speed: 25 RPM (No load)

Die Heads Included: ½”, ¾”, 1”, 1¼” (Type 11R)

Includes support arm, buffering threader torque.

Screw Threads: NPT / BPST

Dies Material: Alloy standard, (HSS optional)

Weight: 6 kg, power drive only.

Length: 500 mm


Standard Equipment of

Four Type SQ30A screwing die heads with dies:1/2", 3/4", 1", 1 1/4"

Electric brush (for threader only): 1 set

Support Arm: 1 pc

Oiler : 1 pc (without oil)

One operation manual



We suggest you threading with HONGLI dies. (The standard dies together with the machine is alloy type, HSS type threading dies are for option ) You can also use RIDGID 11R dies on SQ30A portable pipe threader.


threading dies for SQ30 pipe threader


Ordering Information

Cat no.Model no.Description
306210SQ30A220V portable pipe threader, ½”-1¼”,  BSPT w/Case and Support Arm
306211SQ30A110V  portable pipe threader, ½”-1¼”,  NPT w/Case and Support Arm


Packing

Packaging: Plastic carrying case(inside) + carton (outside) with mark

ModelG.W.N.W.Packing
SQ30A15 KG14 KG50*18*9 cm


HS Code of Portable Pipe Threader: 8467299000




SQ30 portable pipe threader
