JK114 Electric Pipe Hole Cutting Machine for Max 8" Pipes
JK114 Electric Pipe Hole Cutting Machine for Max 8" Pipes




Categories | Hole Saw Cutting and Drilling |
---|---|
Album | View larger image |
Brand | HONGLI |
Model | JK114 |
Motor | 550W |
Speed | 110RPM |
Heigh | 513mm |
Drill Chuck Capacity | 3-16mm |
FOB port | Shanghai or Ningbo |
Terms of Payment | L/C, D/P, Western Union, paypal |
Download DOC | ![]() |
Update Time | 2021-01-28 |

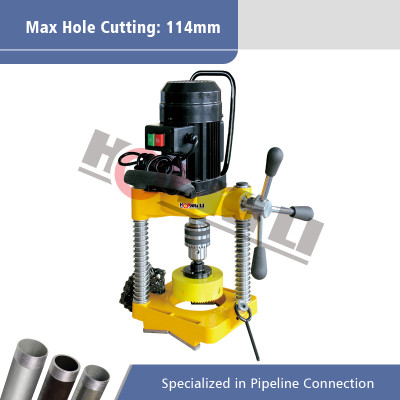

JK114 Electric Pipe Hole Cutting Machine
Product Description
Model JK114 is designed for pipe hole cutting up to 114 mm into steel pipe. The multiple hole sizes allow the use of mechanical fittings for branching unpressurized pipe lines.
Light weight for easy transportation, ideal for the hole cutting in small sizes. Induction motor ensures quiet working performance.
Specifications
Cutting Capacity: up to 4” (114 mm)
Pipe Mounting Capacity: 1 1/4”-8” (32 mm-220 mm)
Drill Chuck Capacity: 3-16 mm
Drill Chuck Speed: 110 RPM (no load)
Motor: induction type, 550 W
Height: 513 mm
Length: 260 mm
Width: 248 mm
G.W./N.W.: 17.2 KG/16 KG
Ordering Information
Catalog No. | Model No. | Description | Weight |
JK114 | Pipe hole cutter 110V-60Hz | 16 kg | |
JK114 | Pipe hole cutter 220V-50Hz | 16 kg |
HS:8462490000
Standard Spares for Hole Cutting Machine JK114
Optional Spares for Hole Cutting Machine JK114
And you can also use the machine together with our tri-stand chain vice
