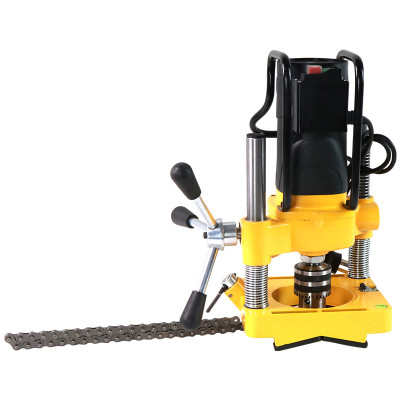

Hangzhou Hongli Electric Pipe Hole Cutting Machine for Max 219 mm Pipes KC114

Hangzhou Hongli Electric Pipe Hole Cutting Machine for Max 219 mm Pipes KC114

Hangzhou Hongli Electric Pipe Hole Cutting Machine for Max 219 mm Pipes KC114
Hangzhou Hongli Electric Pipe Hole Cutting Machine for Max 219 mm Pipes KC114Hangzhou Hongli Electric Pipe Hole Cutting Machine for Max 219 mm Pipes KC114Hangzhou Hongli Electric Pipe Hole Cutting Machine for Max 219 mm Pipes KC114Hangzhou Hongli Electric Pipe Hole Cutting Machine for Max 219 mm Pipes KC114Hangzhou Hongli Electric Pipe Hole Cutting Machine for Max 219 mm Pipes KC114
CategoriesHole Saw Cutting and Drilling
BrandHONGLI
ModelKC114
Motor1500W universal
Speed240RPM
Cutting Capacityup to 114 mm
Drill Chuck Capacity3-16mm
FOB portShanghai or Ningbo
Terms of PaymentL/C, D/P, Western Union, paypal
Download DOC
Update Time2021-07-25
Detail Information

Electric Pipe Hole Cutting Machine for Max 219 mm Pipes KC114


Product Description

1. KC114 pipe hole cutter is designed of cutting holes up to 114mm into steel pipe.

2. The multiple holes sizes allow the use of fittings for branching unpressurized pipe lines.

3. Light weight for easy transportation, ideal for the hole cutting in small sizes.

4. Widely used in fire pipeline hole cutting and other industries of pipe fitting.

5. 1500W universal motor makes the pipe hole cutter powerful and portable.

6. Ideal for pipe hole cutting on the installed pipelines.

7. The chassis of KC114 hole cutter is equipped with a level, which can be used for alignment reference of multiple holes cutting.

8. Various of hole saws can also be supplied.



Specifications

Cutting Capacity: up to 4” (OD: 114mm)

Pipe Mounting Capacity: 1 1/4”-8” (OD: 32mm-219mm)

Drill Chuck Capacity: 3-16mm

Drill Chuck Speed: 240RPM (no load)

Stroke: 100mm

Motor: universal type, 1500W

Machine Size: 26*24.8*51.3cm

N.W.: 16KG



Standard Configuration

Pipe hole cutting machine body*1pc

Handle*1pc

Drill Chuck*1pc


Ordering Information

Catalog No.Model No.DescriptionWeight
310211KC114Pipe hole cutter 220V-50Hz

HS:8462490000


Standard Spares for Pipe Hole Cutting Machine KC114




Optional Spares for Pipe Hole Cutting Machine KC114




And you can also use the machine together with our tri-stand chain vice
